Product performance description:

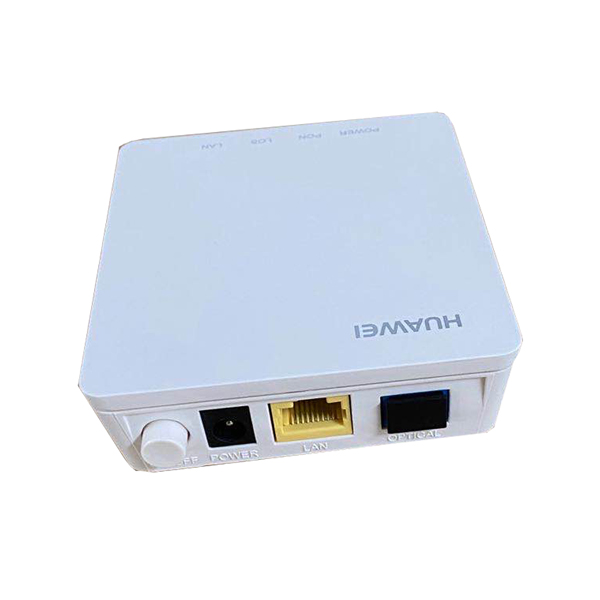

The Echo Life EG8010H is an indoor optical network terminal (ONT) in FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The EG8010H provides one GE Ethernet port. The EG8010H features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services
Product characteristics:
* Plug-and-play: services can be deployed by one click on the NMS, and on-site configuration is not required.
* Remote diagnosis: Remote fault locating is implemented by the loop-line test of POTS ports, call emulation and PPPoE dialup
emulation initiated by the NMS.
* Link monitoring: E2E link detection is achieved using 802.1ag Ethernet OAM.
* High speed forwarding: 900 Mbit/s forwarding in the NAT scenario.
* IPv6 Capability: support IPv6/IPv4 dual stack and DS-Lite
Specification:
|
Model
|
EG8010H
|
|
Dimensions(LxWxH)
|
83 mm x 69 mm x 28 mm
|
|
Weight
|
about 70g
|
|
Power Adapter Input
|
100V to 240V AC, 50 Hz/60 Hz
|
|
System power supply
|
11-14 V DC, 1A
|
|
Operating temperature
|
0°C to +40°C
|
|
Operating Humidity
|
5% RH to 95% RH (non-condensing)
|
|
Power adapter input
|
100–240 V AC, 50/60 Hz
|
|
Ports
|
1GE
|
|
