Description:

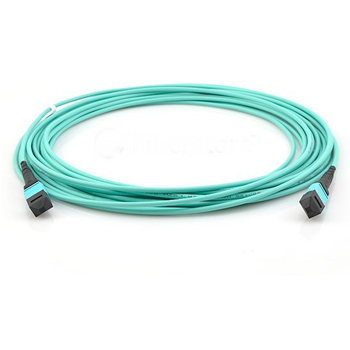

MPO fiber optic patch cords are with MPO
fiber optic connectors. They are several fiberglass connections in one such
patch cord, which offer up to 12 times the density of standard connectors,
providing significant space and cost savings. MPO patch cords use Precision
molded MT ferrules, together with metal guide pins and precise housings
ensuring fiber alignment when mating.
WHBR supply 4, 8, 12 and 24 fiber core configuration MPO with SM (OS1, OS2) and
MM (OM1, OM2, OM3 or OM4) fiber mode. Cable type is available for Jacket Ribbon
Cable, Bare Ribbon Cable and Round Cable. End face is available for PC and APC
polishing. MPO Connector housing is available in Green, Yellow, Beige and Aqua.
Connectors are available for male and female.
FEATURES：
1. Low Insertion Loss
2. Low Polarization Dependent Loss
3. Easy connection and disconnection
4. Fiber Options: OS1 /OS2/OM1/OM2/OM3
5. Polishing Options: PC/UPC/APC
6. Precision Multifiber MT Ferrule
7. Push-pull latching
8. Bare & Flat Jacket Ribbon and
Round cable
9. Male (with guide pin) and Female (without
guide pin) connector type
10. IEC61754-7, Telcordia GR-1435-CORE
compliant
APPLICATIONS：
1. Access Network
2. Telecom/CATV Systems
3. FTTx
SPECIFICATION：
|
PARAMETERS
|
UNIT
|
VALUE
|
|
MPO
Connector
|
--
|
SM
Standard
|
SM
Low Loss
|
MM
Standard
|
MM
Low Loss
|
|
Insertion
Loss
|
Typical
|
dB
|
0.35
|
0.20
|
0.35
|
0.20
|
|
Maximum
|
dB
|
0.75
|
0.35
|
0.60
|
0.35
|
|
Return
Loss
|
dB
|
≥60
for APC (8 Angle Polish)
|
≥20
for PC
|
|
dB
|
≥50
for PC
|
--
|
|
Durability
|
dB
|
<0.2
for 200 times insertion
|
|
Operating
Temperature
|
°C
|
-40 ~75℃
|
|
Ferrule
Type Available
|
--
|
4,8,12,24
|
|
