Description:

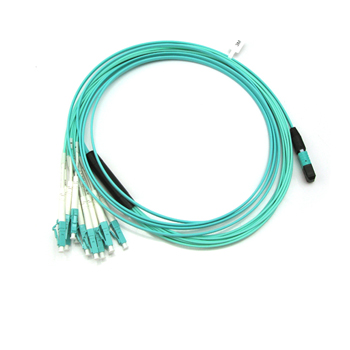

MPO Fan-out Patch Cords, also called MPO Breakout or Harnesses Cables, are designed for high density applications with require high performance and speedy installation. These cables work from fiber optic patch cord backbone assemblies to fiber rack system, and the fiber optic patch cords are high density backbone patch cords. The patch cord assemblies are terminated with MPO connector on one end and strands LC, FC, SC, ST connectors on other end to meet a variety of fiber optic patch cord requirements.
WHBR supply 4, 8, 12 and 24 fiber core configuration MPO with SM (OS1, OS2) and MM (OM1, OM2, OM3 or OM4) fiber mode. We also provide Customized Service such as connector types and cable lengths to meet specific installation environment.
FEATURES
1. Low Insertion Loss
2. Compact Package
3. High Reliability & Stability
4. Cost Effective
5. Precision Multifiber MT Ferrule
6. Push-pull latching
7. Bare & Flat Jacket Ribbon and Round cable
8. Male(with guide pin) and Female(without guide pin) connector type
9. IEC61754-7, Telcordia GR-1435-CORE compliant
APPLICATIONS
1. Access Network
2. Telecom/CATV Systems
3. Optical Fiber Amplifier
4. Fiber Optic Sensor Instrumentation
5. FTTx
SPECIFICATION
PARAMETERS
|
UNIT
|
VALUE
|
MPO Connector
|
--
|
SM Standard
|
SM Low Loss
|
MM Standard
|
MM Low Loss
|
Insertion Loss
|
Typical
|
dB
|
0.35
|
0.20
|
0.35
|
0.20
|
Maximum
|
dB
|
0.75
|
0.35
|
0.60
|
0.35
|
Return Loss
|
dB
|
≥60 for APC (8 Angle Polish)
|
≥20 for PC
|
dB
|
≥50 for PC
|
--
|
Durability
|
dB
|
<0.3 for 500times insertion
|
Operating Temperature
|
°C
|
-40 ~75℃
|
Ferrule Type Available
|
--
|
4,8,12,,24
|
|
