Description:

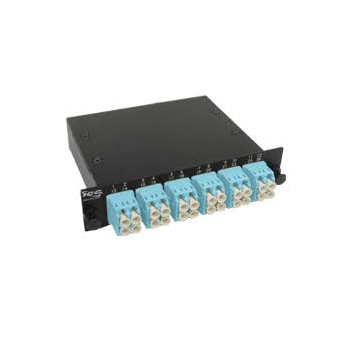

MPO Cassettes are specially designed to reduce installation time and cost for an optical network infrastructure in the premises environment. MPO Cassettes provide secure transition between MPO and FC, LC, ST, or SC connectors. They are used to interconnect MPO backbones with LC/ FC/ SC/ST patching.

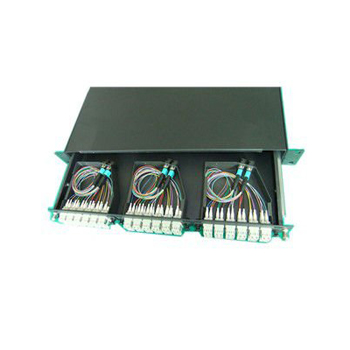

WHBR offers a wide range of single-mode and multimode MPO Cassettes. The standard cassettes have one MPO connection (12-fiber) or two MPO connections (24-fiber) on the back of each cassette, which can accommodate 12 and 24 port configurations.
FEATURES
1. Small volume, high fiber density
2. SM/MM 4, 8, 12, 24 cores available
3. PC (plane) and APC (8°) available
APPLICATIONS
1. Access Network
2. Data centers
3. LAN, WAN and SAN
4. Interoffice cross-connects
SPECIFICATION
|
PARAMETERS
|
UNIT
|
VALUE
|
|
MPO Connector
|
--
|
SM Standard Ferrule
|
MM Standard Ferrule
|
|
Insertion Loss
|
Typical
|
dB
|
0.35
|
0.35
|
|
Maximum
|
dB
|
0.75
|
0.60
|
|
Return Loss
|
dB
|
≥60 for APC (8 Angle Polish)
|
≥20 for PC
|
|
dB
|
≥50 for PC
|
--
|
|
Durability
|
dB
|
<0.5 for 500times insertion
|
|
Operating Temperature
|
°C
|
-40~75℃
|
|
Ferrule Type Available
|
--
|
4,8,12,24
|
|
