Description:

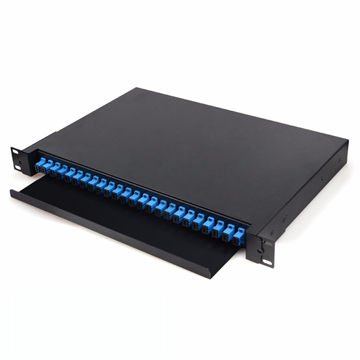

The Patch Panel (also called optical termination box) is used where termination and connectivity of 8 ~72 fibers (high density) is desired. The panel design is based on a 1U or 2U rack unit height with FC/SC/ST/double LC compatible adapter. Standard panels are available in empty, loaded and pre-terminated versions. Loaded panels include adaptors and adapter plates. Pre-terminated panels include adaptors, adaptor plates and standard 12 cores splicing tray.

Features:

1. Modular design, compatible with industry standard equipment frame, 19" Rack.

2. One cabinet design provides OSP cable fibers and pigtail splicing, patch-cord termination and storage.

3. Slide-out features and modular adaptor panel for ease of installation, inspection and testing.

4. Provides maximum protection of optical components

Applications

1. Telecommunication Closets

2. Data Centers

3. Customer Premise

4. Central Offices

5. Hubs

6. Cabinets

7. Remote Terminals

Structure and Material

1. Steel sheet material

2. Black or grey texture powder coated

3. Universal mounting bracket

4. 19” rack compatible

5. Rugged construction, ensuring environmental, mechanical, and optical integrity

6. Operating temperature:－20℃～＋55℃
