General Description

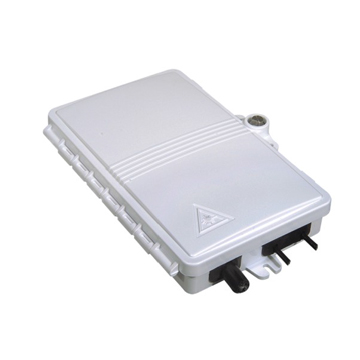

The Optical Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Features:

1.    Total enclosed structure, be in nice shape.

2.    Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging.

3.    Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution…etc. all in one.

4.    Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter installation, easy maintenance.

5.    Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.

6.    Most of the types can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

7.    Distributing optic into 2-48 paths by PLC splitter, protecting optic fiberto terminal, easy to operate.

8.    Can be installed with PLC splitter, optional splice tray, lock with a key

9.    Entering fiber cables of 1~48 cores capacity fuse and splice with pigtails, connecting PLC splitter pigtails.

10.  FTTH cable connecting the PLC splitter pigtails through SC, FC, LC duplex adapters panel, entering into building or home.

11.  IP 65 Protection Rating, antirust, dust proof, impact resistance, excellently stable performance, long lifespan.

12.  OEM and customer's designation are acceptable

Applications:

1.    Optical LAN & WAN & CATV

2.    FTTH project & FTTX

3.    Testing instruments

4.    Optical fiber communication networks

5.    PON Networks

6.    Optical Signal Distribution

Specification
