1.1 Cable

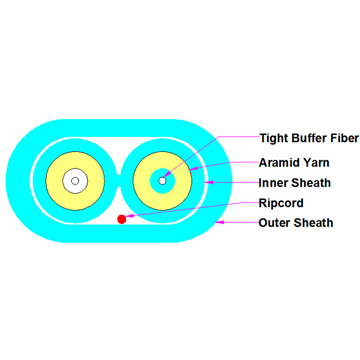

Structure
1.2 Characteristics
A.
Small size, light weight, easy to strip
B.
Soft, flexible, easy to lay and splice
C.
Good mechanical and environmental performance;
D.
Meet various application requirements;
E.
Meet the requirements of RoHS.
C
1.3 Cable
Application
A.
As pigtails and patch cords for communication equipment;
B. As optical connections of optical equipment and apparatus, optical distribution frames and optical communication equipment rooms;
C. As indoor cable.
1.4 Cable
Properties
Transport
temperature: - 20 deg C to + 60 deg C
Storage
Temperature: - 20 deg C to + 60 deg C
Operating
temperature: - 20 deg C to + 60 deg C
Installation
temperature: - 5 deg C to + 50 deg C
A wide ranged of optical fiber types are available (G.652D, G.657, OM1,
OM2, OM3, OM4 etc.)
Outer diameter: Customizable
Material: PVC, LSZH
Color: Customized
2.
Optical Characteristics& Technical Parameters
2.1
Technical Parameters
|
Cable Code
|
Cable Diameter
mm
|
Cable Weight(Ref)
kg/km
|
TBF
Diameter
μm
|
Tensile strength
Long/Short term
mm
|
Crush Resistance
Long/short term
N/100mm
|
Bending Radius
Dynamic/Static
mm
|
|
PVC
jacket
|
LSZH
jacket
|
|
GJFJV(H)-1.6
|
1.6±0.2
|
2.4
|
2.6
|
600±50
|
40/80
|
100/500
|
60/30
|
|
GJFJV(H)-1.9
|
1.9±0.2
|
3.5
|
4.5
|
900±50
|
100/200
|
100/500
|
60/30
|
|
GJFJV(H)-2.8
|
2.8±0.2
|
6.0
|
7.5
|
900±50
|
100/200
|
100/500
|
60/30
|
2.2
Optical Characteristics
|
Fiber Type
|
Attenuation
|
OFL
|
Valid mode
band width
|
10G Ethernet
link length SX
|
Min. bending
radius
|
|
Condition
|
1310/1550nm
|
850/1300nm
|
850/1300nm
|
850nm
|
850nm
|
|
|
Typical
|
Max.
|
Typical
|
Max.
|
|
Unit
|
dB/km
|
dB/km
|
dB/km
|
dB/km
|
MHZ.km
|
MHZ.km
|
m
|
mm
|
|
G652D
|
0.36/0.22
|
0.5/0.4
|
|
|
|
|
|
16
|
|
G657A1
|
0.36/0.22
|
0.5/0.4
|
|
|
|
|
|
10
|
|
G657A2
|
0.36/0.22
|
0.5/0.4
|
|
|
|
|
|
7.5
|
|
OM1
|
|
|
3.0/1.0
|
3.5/1.5
|
≥500/500
|
≥2000
|
≤300
|
30
|
|
OM2
|
|
|
3.0/1.0
|
3.5/1.5
|
≥200/500
|
≥4700
|
≤550
|
30
|
|
OM3
|
|
|
3.0/1.0
|
3.5/1.5
|
≥1500/500
|
≥2000
|
≤300
|
30
|
|
OM4
|
|
|
3.0/1.0
|
3.5/1.5
|
≥3500/500
|
≥4700
|
≤350
|
30
|
3.
Packing and shipping
3.1 The
cables are packed in wooden drums and then in carton box
3.2 Standard
delivery length is 1km/roll or per customer’s requirements.
3.3 Sheath
Marking
The
sheath marking are hot stamped on the sheath at one meter interval with white
color. The accuracy of the length marking shall be 0 ~ +1%.
Re-marking
is yellow color, if necessary.
WHBR *** XX
FIBRE Month/Year XXXXM
WHBR:
Manufacturer’s Name
***: Customer’s
name
XX
FIBRE: Fiber count
Month/Year:
Manufacture date
XXXXM:
The figure of meter.
|
