1.1 Cable

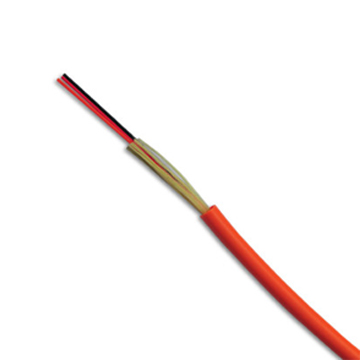

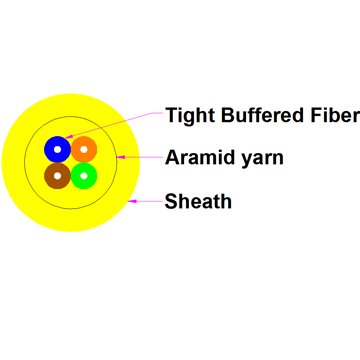

Structure
1.2 Characteristics
A. Tight
buffer fiber easy strip
B. Tight
buffer fiber has excellent flame-retardant performance
C. Aramid
yarn as strength member makes cable have excellent tensile strength
D. The
jacket anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant and
harmless to environment etc.
1.3 Cable
Application
1. As
access cable in access network or premises network;
2.
As building cable in premises distribution system, such as shaft cabling,
drainage tubes cabling, trough cabling, wall cabling, ceiling cabling,
especially in the environment of high requirements of flexibility and
bending properties;
3.
Used in communication between outdoor AP and ONT.
1.4
Cable Properties
Transport
temperature: - 20 deg C to + 60 deg C
Storage
Temperature: - 20 deg C to + 60 deg C
Operating
temperature: - 20 deg C to + 60 deg C
Installation
temperature: - 5 deg C to + 50 deg C
1.5
Color code scheme: According to EIA/TIA 598
|
No.
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
|
Fiber
color
|
Blue
|
Orange
|
Green
|
Brown
|
Grey
|
White
|
Red
|
Black
|
Yellow
|
Violet
|
Pink
|
Aqua
|
|
Tube
color
|
Blue
|
Orange
|
Green
|
Brown
|
Grey
|
White
|
Red
|
Black
|
Yellow
|
Violet
|
Pink
|
Aqua
|
A
wide range of optical fiber types are available (G.652D, G.657,
A1a, A1b etc.)
Strength
Member: Aramid yarn
Outer
diameter: Customizable
Material:
LSZH
Color:
Black
2.
Optical Characteristics
|
Fiber Type
|
Attenuation
|
OFL
|
Valid mode
band width
|
10G Ethernet
link length SX
|
Min. bending
radius
|
|
Condition
|
1310/1550nm
|
850/1300nm
|
850/1300nm
|
850nm
|
850nm
|
|
|
Typical
|
Max.
|
Typical
|
Max.
|
|
Unit
|
dB/km
|
dB/km
|
dB/km
|
dB/km
|
MHZ.km
|
MHZ.km
|
m
|
mm
|
|
G652D
|
0.36/0.22
|
0.5/0.4
|
|
|
|
|
|
16
|
|
G657A1
|
0.36/0.22
|
0.5/0.4
|
|
|
|
|
|
10
|
|
G657A2
|
0.36/0.22
|
0.5/0.4
|
|
|
|
|
|
7.5
|
|
OM1
|
|
|
3.0/1.0
|
3.5/1.5
|
≥500/500
|
≥2000
|
≤300
|
30
|
|
OM2
|
|
|
3.0/1.0
|
3.5/1.5
|
≥200/500
|
≥4700
|
≤550
|
30
|
|
OM3
|
|
|
3.0/1.0
|
3.5/1.5
|
≥1500/500
|
≥2000
|
≤300
|
30
|
|
OM4
|
|
|
3.0/1.0
|
3.5/1.5
|
≥3500/500
|
≥4700
|
≤350
|
30
|
3.
Packing and shipping
3.1 The
cables are packed in wooden drums and then in carton box
3.2 Standard
delivery length is 1km/roll or per customer’s requirements.
3.3 Sheath
Marking
The
sheath marking are hot stamped on the sheath at one meter interval with white
color. The accuracy of the length marking shall be 0 ~ +1%.
Re-marking
is yellow color, if necessary.
WHBR *** XX
FIBRE Month/Year XXXXM
WHBR:
Manufacturer’s Name
***: Customer’s
name
XX
FIBRE: Fiber count
Month/Year:
Manufacture date
XXXXM:
The figure of meter.
|
