1. General
1.1

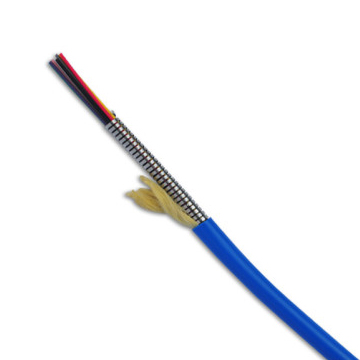

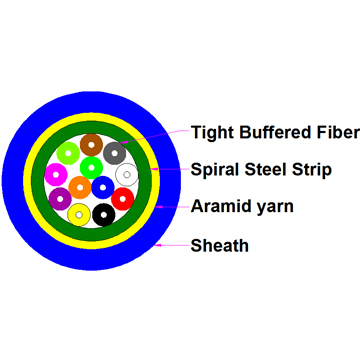

Cable Structure
1.2
Feature:
Flexible,
high compressive property, excellent wear and corrosion
resistance, good oil resistance;
Good
mechanical and environmental characteristic, wide operating
temperature range;
Meet the
requirements of RoHS requirements.
1.3
Application:
The
end of the cable can be processed into fiber connector, suitable for
indoor and outdoor environment;
Used
in temperature measurement of tunnel fire
fighting or industrial environment;
Used
in physical examination of building such as bridge, warehouse, etc
1.4 Cable
Properties
Transport
temperature: - 20 deg C to + 60 deg C
Storage
Temperature: - 20 deg C to + 60 deg C
Operating
temperature: - 20 deg C to + 60 deg C
Installation
temperature: - 5 deg C to + 50 deg C
2.Optical Characteristics&
Technical Parameters
2.1
Technical Parameters
|
Cable Code
|
Cable Diameter
mm
|
Cable Weight(Ref)
kg/km
|
TBF Diameter
μm
|
Tensile strength
Long/Short term
mm
|
Crush Resistance
Long/short term
N/100mm
|
Bending Radius
Dynamic/Static
mm
|
|
PVC jacket
|
LSZH jacket
|
|
GJSFJH
|
Customized
|
8.0-25
|
10.0-50
|
600/900
|
300/600
|
500/1000
|
60/30
|
2.
Optical Characteristics
|
Fiber Type
|
Attenuation
|
OFL
|
Valid mode
band width
|
10G Ethernet
link length SX
|
Min. bending
radius
|
|
Condition
|
1310/1550nm
|
850/1300nm
|
850/1300nm
|
850nm
|
850nm
|
|
|
Typical
|
Max.
|
Typical
|
Max.
|
|
Unit
|
dB/km
|
dB/km
|
dB/km
|
dB/km
|
MHZ.km
|
MHZ.km
|
m
|
mm
|
|
G652D
|
0.36/0.22
|
0.5/0.4
|
|
|
|
|
|
16
|
|
G657A1
|
0.36/0.22
|
0.5/0.4
|
|
|
|
|
|
10
|
|
G657A2
|
0.36/0.22
|
0.5/0.4
|
|
|
|
|
|
7.5
|
|
OM1
|
|
|
3.0/1.0
|
3.5/1.5
|
≥500/500
|
≥2000
|
≤300
|
30
|
|
OM2
|
|
|
3.0/1.0
|
3.5/1.5
|
≥200/500
|
≥4700
|
≤550
|
30
|
|
OM3
|
|
|
3.0/1.0
|
3.5/1.5
|
≥1500/500
|
≥2000
|
≤300
|
30
|
|
OM4
|
|
|
3.0/1.0
|
3.5/1.5
|
≥3500/500
|
≥4700
|
≤350
|
30
|
3.
Packing and shipping
3.1 The
cables are packed in wooden drums and then in carton box
3.2 Standard
delivery length is 1km/roll or per customer’s requirements.
3.3 Sheath
Marking
The
sheath marking are hot stamped on the sheath at one meter interval with white
color. The accuracy of the length marking shall be 0 ~ +1%.
Re-marking
is yellow color, if necessary.
WHBR *** XX
FIBRE Month/Year XXXXM
WHBR:
Manufacturer’s Name
***: Customer’s
name
XX
FIBRE: Fiber count
Month/Year:
Manufacture date
XXXXM:
The figure of meter.
|
