General Description

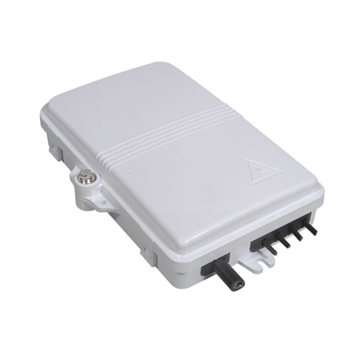

The Optical Distribution Box is used as a termination point for the feeder
cable to connect with drop cable in FTTx communication network system. The
fiber splicing, splitting, distribution can be done in this box, and meanwhile
it provides solid protection and management for the FTTx network building.
Features:
1. Total enclosed structure,
be in nice shape.
2. Material: PC+ABS,
wet-proof, water-proof, dust-proof, anti-aging.
3. Clamping for feeder cable
and drop cable, fiber splicing, fixation, storage, distribution…etc. all in
one.
4. Cable, pigtails, patch
cords are running through own path without disturbing each other, cassette type
SC adapter installation, easy maintenance.
5. Distribution panel can be
flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance
and installation.
6. Most of the types can be
installed by the way of wall-mounted or poled-mounted,
suitable for both indoor and outdoor uses.
7. Distributing optic into 2-48 paths by PLC splitter, protecting optic fiberto terminal, easy to operate.
8. Can be installed with PLC splitter, optional splice tray, lock with a key
9. Entering fiber cables of 1~48 cores capacity fuse and splice with pigtails,
connecting PLC splitter pigtails.
10. FTTH cable connecting the PLC splitter pigtails through SC, FC, LC duplex adapters panel, entering into building or home.
11. IP 65 Protection Rating, antirust, dust proof, impact resistance, excellently
stable performance, long lifespan.
12. OEM and customer's designation are acceptable
Applications:
1. Optical LAN & WAN & CATV
2. FTTH project & FTTX
3. Testing instruments
4. Optical fiber communication networks
5. PON Networks
6. Optical Signal Distribution
Specification
|
Environmental
Requirement
|
|
Working
Temperature
|
-40℃~+85℃
|
|
Relative
humidity
|
≤85%(+30℃)
|
|
Atmospheric
pressure
|
70KPa~106KPa
|
|
Main
technical data
|
|
Insertion
loss
|
0.2dB
|
|
UPC
return loss
|
50dB
|
|
APC
return loss
|
60dB
|
|
Life
of insertion and extraction
|
1000times
|
|
Thunder-proof
Technical Data
|
|
The
grounding device is isolated with the cabinet, isolation resistance is no
less than 2x104MΩ/500V(DC); IR≥2x104MΩ/500V
|
|
The
withstand voltage between grounding device and cabinet is no less than
3000V(DC)/min, no puncture, no flashover; U≥3000V
|
|
Dimension(LxWxH)mm
|
186x116x40mm
|
|
Installation
|
Wall mounting(outdoor\indoor)
|
|
Level of Protection
|
IP65
|
|
Cable Entries
|
Supporting Uncut (with Branch Holes)
|
|
Max Cable Diameter
|
Max Input =φ10mm, Max output =2X3mm
|
|
Configuration
|
4pcs SC adapter and
4pcs Double LC and 1 pcs 1*4 Blockless PLC
|
|
Packing Information
|
GW:14.8Kg QTY:40PCS
MEAS:590X445X270mm
|
|
