1. General
1.1 Cable
Description
The
900μm nylon tight buffered optical fiber unit is positioned in the center.
Two 0.45mm steel wire are placed at the two sides. Then, the cable is completed
with a black or colored LSZH sheath.

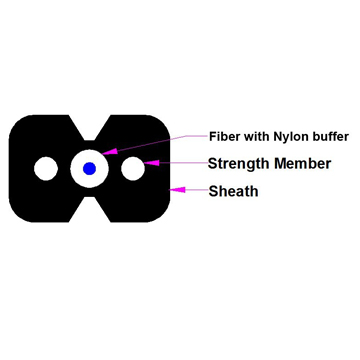

1.2 Cable
Structure
1.3 Cable
Characteristics
A.
Special low-Ben-sensitivity fiber provides high bandwidth and excellent communication
transmission property.
B.
Nylon buffer and steel wire strength member ensure good performance of crush
resistance to protect the fiber.
C.
Simple structure, light weight and high practicability
D.
Novel flute design easily strip and splice, simplify the installation and
maintenance.
E.
Low smoke, zero halogen and flame retardant sheath
2.
Optical Characteristics& Technical Parameters
2.1Optical
Characteristics
|
Fiber type
|
Attenuation
|
OFL
|
Valid bandwidth
|
10G Ethernet
link length SX
|
Minimum
|
|
Condition
|
1310/1550nm
|
850/1300nm
|
850/1300nm
|
850nm
|
850nm
|
|
|
Nominal
|
Maximum
|
Nominal
|
Maximum
|
|
Unit
|
dB/km
|
dB/km
|
dB/km
|
dB/km
|
MHZ.km
|
MHZ.km
|
m
|
mm
|
|
G657A2
|
0.36/0.22
|
0.5/0.4
|
|
|
|
|
|
7.5
|
2.2
Technical Parameters
|
Cable Type
|
Fiber Count
|
Cable Size
mm
|
Cable Weight
(ref) kg/km
|
Tensile Strength
Long/Short Term (N)
|
Crush Resistance
Long/Short Term
N/100mm
|
Bending Radius
Static/Dynamic
mm
|
|
GJXJOH-1G.657A2
|
1
|
2.0x3.0(±0.1)
|
8.0
|
80/200
|
500/1000
|
15/30
|
3.
Packing and shipping
3.1 The
cables are packed in plywood drums.
3.2 Standard
delivery length is 1km/drum or per customer’s requirements.
3.3 Sheath
Marking
Customized
|
