Model
|
GJXKFV
|
|
Fiber
type
|
SM(G657A,
G652D)
|
|
Fiber
count
|
1/2/4/8/12
|
|
Strength
member
|
KFRP(Kevlar
FRP)
|
|
Outer
sheath
|
PVC/LSZH/LLDPE
|
|
Application
|
FTTX
|
|
OEM
|
Available
|
|
Packing
|
1km/wooden
drum
|

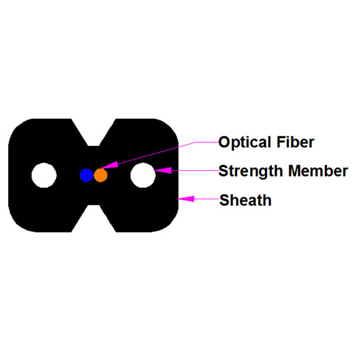

Cable
construction
The
optical fiber unit is positioned in the center; two parallel Fiber Reinforced
Plastics (FRP) steel wires are placed at the two sides. Then, the cable is
completed with a black or color LSZH or other materials sheath.
Technical
parameter
|
Fiber Type
|
Attenuation
|
OFL
|
Valid mode
band width
|
10G Ethernet
link length SX
|
Min. bending
radius
|
|
Condition
|
1310/1550nm
|
850/1300nm
|
850/1300nm
|
850nm
|
850nm
|
|
|
Typical
|
Max.
|
Typical
|
Max.
|
|
Unit
|
dB/km
|
dB/km
|
dB/km
|
dB/km
|
MHZ.km
|
MHZ.km
|
m
|
mm
|
|
G657A1
|
0.36/0.22
|
0.5/0.4
|
|
|
|
|
|
10
|
|
G657A2
|
0.36/0.22
|
0.5/0.4
|
|
|
|
|
|
7.5
|
|
OM3
|
|
|
3.0/1.0
|
3.5/1.5
|
≥1500/500
|
≥2000
|
≤300
|
30
|
|
OM4
|
|
|
3.0/1.0
|
3.5/1.5
|
≥3500/500
|
≥4700
|
≤550
|
30
|
|
Cable Type
|
Fiber Count
|
Cable Size
mm
|
Cable Weight
(ref) kg/km
|
Tensile Strength
Long/Short Term (N)
|
Crush Resistance
Long/Short Term
N/100mm
|
Bending Radius
Static/Dynamic
mm
|
|
GJXH-1G.657A2
|
1
|
2.0x3.0(±0.1）
|
8.0
|
80/200
|
500/1000
|
15/30
|
Characteristics
1.
Special low-bend-sensitivity fiber provides high bandwidth and excellent
communication transmission property
2.
Two parallel strength members ensure good performance of crush resistance
to protect the fiber
3.
Simple structure, light weight and high practicability
4.
Novel flute design, easily strip and splice, simplify the installation and
maintenance
Application
1. Access
network, fiber to the home
2. Support
the Internet, CATV, telephone and more network service in the future.
|
