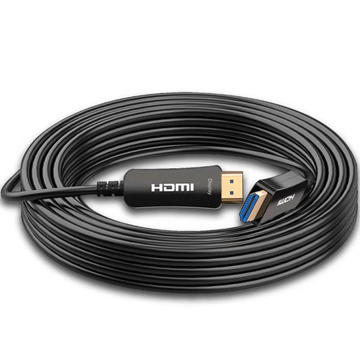

| Product Name：HDMI 2.0 Type AOC Optical Fiber Cable |
| Product Detailed： |
General Description:
HDMI Optical Fiber Cable is based on optical fiber as high-definition signal transmission medium, long-distance signal transmission is basically non-attenuated, and has long relay distance, the longest transmission distance can reach 300 Meter.
For HIFI, projector and video surveillance system, the long-distance transmission signal of traditional copper cable is easy to be distorted, and repeater must be added, which directly leads to the unavailability of equipment or worse experience. For the HDMI Optical Fiber Cable, doesn’t need to worry about the transmission signal attenuation or distortion when installing these devices, it can be fully in accordance with the actual needs of users to arrange system equipment.
In addition, HDMI Optical Fiber Cable has many incomparable advantages, such as strong corrosion resistance, strong radiation resistance, good windability, no spark, small leakage, strong confidentiality, and even can be used in special environment or military.
WHB&R’s HDMI 2.0 AOC Otpical Fiber Cable supports HDMI 2.0 protocol, length customization and shell customization. It is a mature and competitive high-definition interconnection scheme on the market until now.
Features:
1. Embedded advanced optical engine to support ultra-long distance signal transmission. Plug and play without external power supply and power amplifier unit.
2. Using optical fiber to transmit TMDS high frequency signal, copper wire to transmit CEC, HEAC and other control signals, has a good anti-electromagnetic and radio frequency interference. Products can work steadily and reliably in challenging environments.
3. The cable is composed of four core optical units and seven electrical units, aramid yarn as reinforcement and black PVC sheath. The outer diameter of the cable is only 4.8mm.
4. Compliance with HDMI 2.0 Protocol Specification and HDMI 1.4 Protocol Specification.
Advantage:
1. We use the China leading YOFO Company’s multimode fiber, which has lower attenuation.
2. Unlike some other company use thinner cable, or even copper-clad aluminum instead of copper cables as secondary filling, we use standard OD4.6MM copper cables.
3. We use soft PVC outer sheath material;
4. We use the industry-leading Silicon Line Company’s chips, which imported from Germany;
5. We use the laser emitter produced by the Philips UIM Company, which is the industry-leading company also.
6. Customer's different customization requirements available and provide technical support.
Parameter:
|
Specification
|
HDMI
Type A connector
|
|
Cable
OD
|
0.19 inches (4.8 mm)
|
|
Bandwidth
|
18Gbps
|
|
Resolution
|
480P,720P,1080i,1080P,3D，4K @60Hz(4:4:4)
|
|
HDCP
Version
|
HDCP1.4/2.2
|
|
Cable
specification
|
Hybrid
Cable：Optical
Fiber + Copper Cable (Woven mesh available)
Copper
specification: AWG 28.UIT
Optical
Fiber：50/125
um multimode fiber
|
|
Photoelectric
Converter
|
4
CH 850nm VCSEL/PIN
|
|
Power
|
HDMI
+5V (No need outer power)
|
|
Working
Current
|
≤45mA
|
|
Power
waste
|
≤250mw
|
|
Length
|
0-150m
Optional
|
|
Bending
Radius
|
＞20mm
|
|
Operating
temperature
|
0-55℃
|
|
Tension
force
|
≤100N
|
|
Storage
Temperature
|
-40 ℃ to 70 ℃
|
|
Ethernet
function
|
No
|
|
Audio
return channel
|
Yes
|
Testing equipment:
Quantum Wire Testing Equipment, 804B Signal Source, Sony 4K Player, Panasonic Projector, Agilent Eye Map Equipment, etc.
Application scenarios:
1. High Definition Matrix
2. Family Theatre, Commercial Theatre
3. Medical equipment, factory automation
4. Stadiums, large ornamental halls
5. Large International Convention Center, International Exhibition Hall
6. Television studios, outdoor advertisements, Airport HD displays, etc.
Customer groups:
TV factory, large-scale performance, large-scale outdoor advertising, cinema.
|
|
