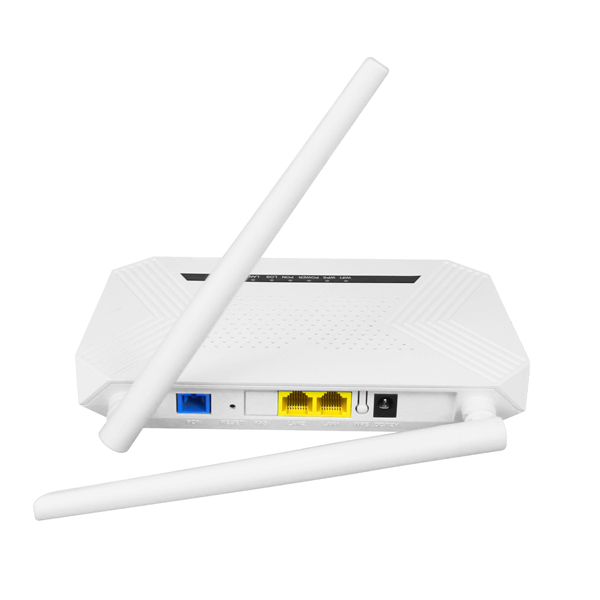

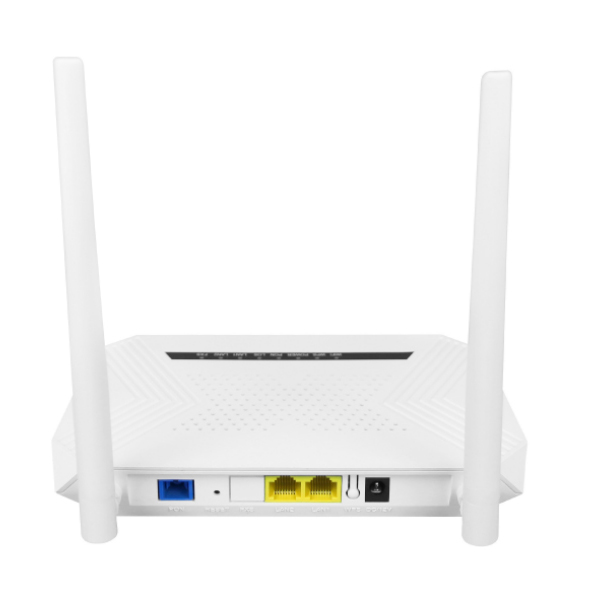

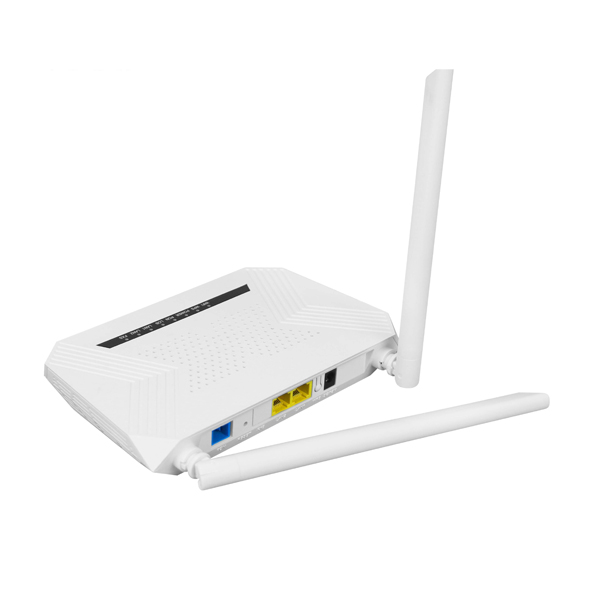

Product
Description:
|
Item
|
Value
|
|
Place
of Origin
|
Hubei,China
|
|
Brand
Name
|
WHB&R
|
|
Model
Number
|
WHBR-2202XR
|
|
Type
|
GPON
|
|
No.
of Fiber
|
1.
|
|
Use
|
FTTH
|
|
Dimensions(L*W*H)
|
28mm*176mm*107mm
|
|
Weight
|
About
150g
|
|
Operating
temperature
|
0
~+40°C
|
|
Operating
humidity
|
5%
RH to 95%RH(non-condensing)
|
|
Power
adapter input
|
100-240V
AC,50/60Hz
|
|
System
power supply
|
11-14V
DC,0.5A
|
|
Static
power consumption
|
2W
|
|
Maximum
power consumption
|
3.6W
|
|
Ports
|
1GE
+ 1FE + WIFI
|
|
Indicators
|
POWER/PON/LAN/LOS
|
Description:
*
WHBR-2202XR is designed as HGU (Home Gateway Unit) in different FTTH solutions.
The carrier-class FTTH application provides different services access.
* WHBR-2202XR is based on mature and stable, cost-effective XPON technology.
* WHBR-2202XR adopts high reliability, easy management, configuration
flexibility and good quality of service guarantees to meet the technical
performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of
ITU-TG.984.X.

Features:
*
Support EPON/GPON mode and switch mode automatically
* Support Route mode for PPPoE/IPoE/Static IP and Bridge mode
* Support IPv4 and IPv6 Dual mode
* Support 4G WIFI and 2*2 MIMO
* Support LAN IP and DHCP Server configuration
* Support Port Mapping and Loop-Detect
* Support Firewall function and ACL function
* Support IGMP Snooping/Proxy multicast feature
* Support TR069 remote configuration and maintenance
* Specialized design for system breakdown prevention to maintain stable system
Applications:
Typical
Solution:FTTH(Fiber To The Home)
Typical
Business:INTERNET,IPTV,WIFI etc
Hardware
Specification:
|
Technical
item
|
Details
|
|
PON Interface
|
1
GPON BOB (Class B+/Class C+)
|
|
Receiving
sensitivity: ≤-27dBm/≤-29dBm
|
|
Transmitting
optical power: +0.5~+5dBm/+2~+7dBm
|
|
Transmission
distance: 20KM
|
|
Wavelength
|
TX:
1310nm, RX: 1490nm
|
|
Optical
Interface
|
SC/UPC
Connector
|
|
Design
Scheme
|
RTL9602C+RTL8192FR+Si32192
BOB(RTL8290B)
|
|
Chip
Spec
|
CPU
625MHz,DDR2 64MB
|
|
Flash
|
SPI
Nor Flash 16MB
|
|
LAN
Interface
|
1
x 10/100/1000Mbps(GE) and 1 x 10/100Mbps(FE) auto adaptive Ethernet
interfaces. Full/Half, RJ45 connector
|
|
Wireless
|
Compliant
with IEEE802.11b/g/n,
|
|
Operating
frequency: 2.400-2.4835GHz
|
|
support
MIMO, rate up to 300Mbps,
|
|
2T2R,2
external antenna 5dBi,
|
|
Support:
Multiple SSID
|
|
Channel:
Auto
|
|
Modulation
type: DSSS, CCK and OFDM
|
|
Encoding
scheme: BPSK, QPSK, 16QAM and 64QAM
|
|
LED
|
7
LED, For Status of WIFI,WPS,PWR,LOS,PON,LAN1~LAN2
|
|
Push-Button
|
2,For
Function of Reset, WPS
|
|
Operating Condition
|
Temperature:
0℃~+50℃
|
|
Humidity:
10%～90%(non-condensing)
|
|
Storing Condition
|
Temperature:
-30℃~+60℃
|
|
Humidity:
10%~90%(non-condensing)
|
|
Power
Supply
|
DC
12V/1A
|
|
Power
Consumption
|
≤6W
|
|
Dimension
|
180mm×107mm×28mm(L×W×H)
|
|
Net
Weight
|
0.15Kg
|

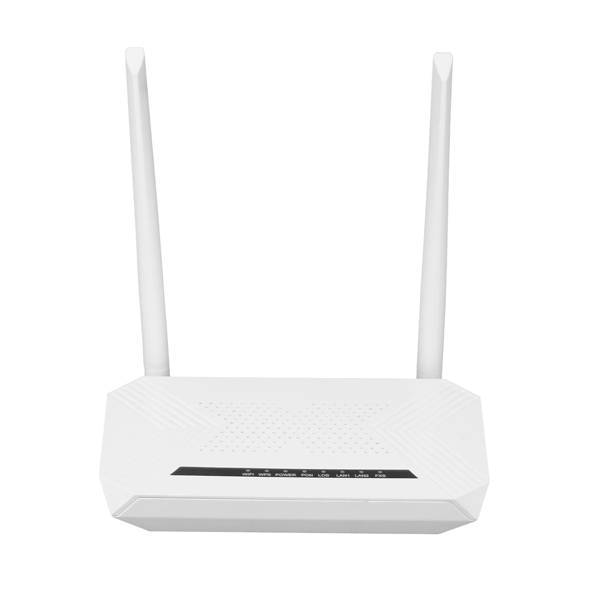

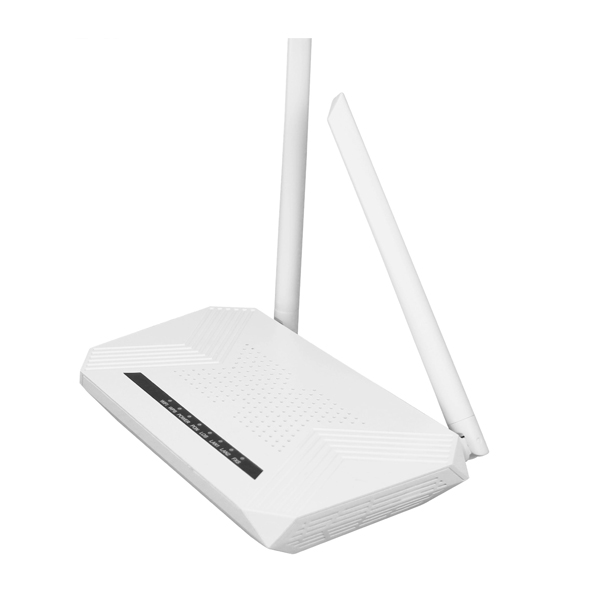

Panel
Lights Introduction:
|
Pilot
Lamp
|
Status
|
Description
|
|
WIFI
|
On
|
The
WIFI interface is up.
|
|
Blink
|
The
WIFI interface is sending or/and receiving data (ACT).
|
|
Off
|
The
WIFI interface is down.
|
|
WPS
|
Blink
|
The
WIFI interface is securely establishing a connection.
|
|
Off
|
The
WIFI interface does not establish a secure connection.
|
|
PWR
|
On
|
The
device is powered up.
|
|
Off
|
The
device is powered down.
|
|
LOS
|
Blink
|
The
device doses not receive optical signals or with low signals.
|
|
Off
|
The
device has received optical signal.
|
|
PON
|
On
|
The
device has registered to the PON system.
|
|
Blink
|
The
device is registering the PON system.
|
|
Off
|
The
device registration is incorrect.
|
|
LAN1~LAN2
|
On
|
Port
(LANx) is connected properly (LINK).
|
|
Blink
|
Port
(LANx) is sending or/and receiving data (ACT).
|
|
Off
|
Port
(LANx) connection exception or not connected.
|
|
