Description:
|
Item
|
Value
|
|
Place
of Origin
|
Hubei,
China
|
|
Brand
Name
|
WHB&R
|
|
Model
Number
|
WHBR-3102XR
|
|
Type
|
GPON
|
|
No.
of Fiber
|
1.
|
|
Use
|
FTTH
|
|
Dimensions(L*W*H)
|
28mm*176mm*107mm
|
|
Weight
|
About
200g
|
|
Operating
temperature
|
0
~+40°C
|
|
Operating
humidity
|
5%
RH to 95%RH(non-condensing)
|
|
Power
adapter input
|
100-240V
AC,50/60Hz
|
|
System
power supply
|
11-14V
DC,0.5A
|
|
Static
power consumption
|
2W
|
|
Maximum
power consumption
|
3.6W
|
|

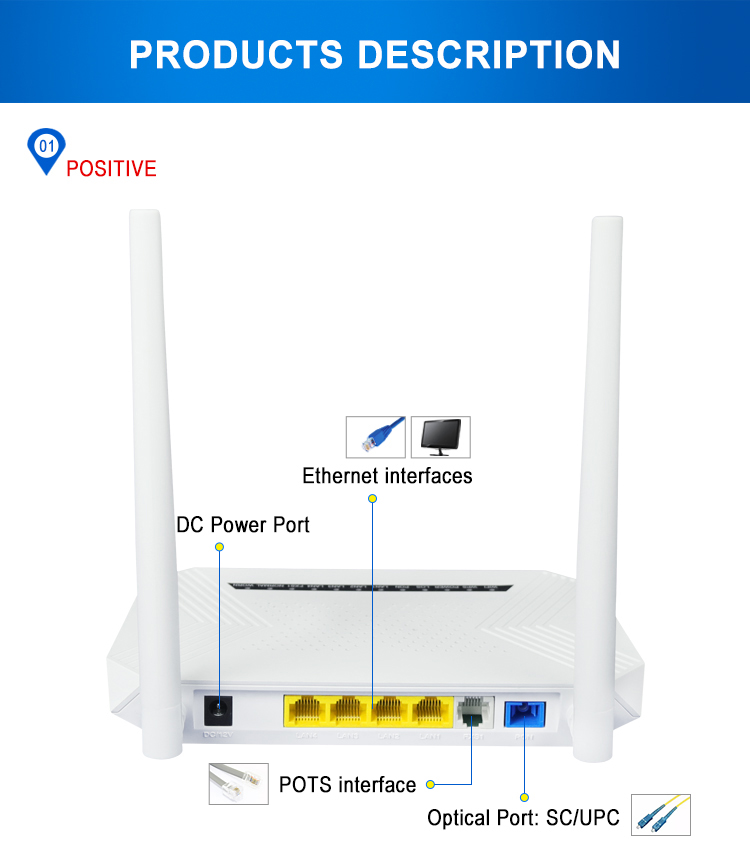

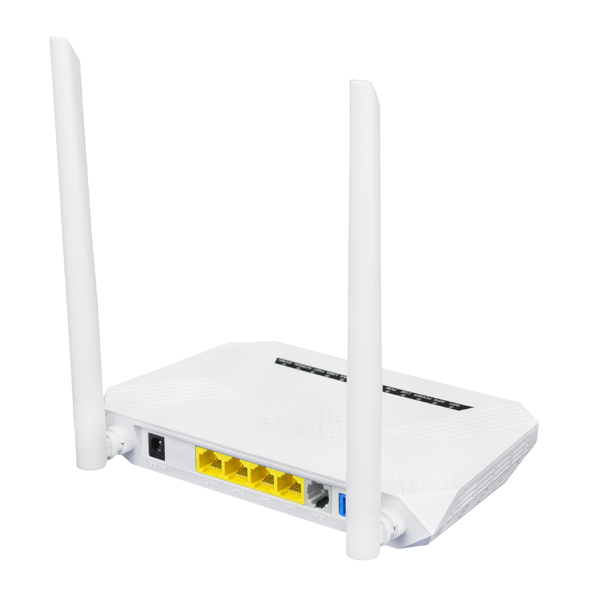

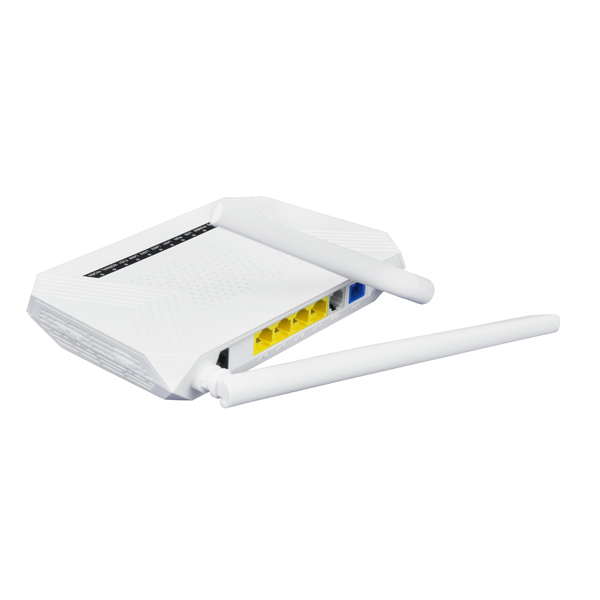

Ports
|
1GE
+ 3FE + WIFI + POTS
|
|
Indicators
|
POWER/PON/LAN/LOS
|

Description:
*

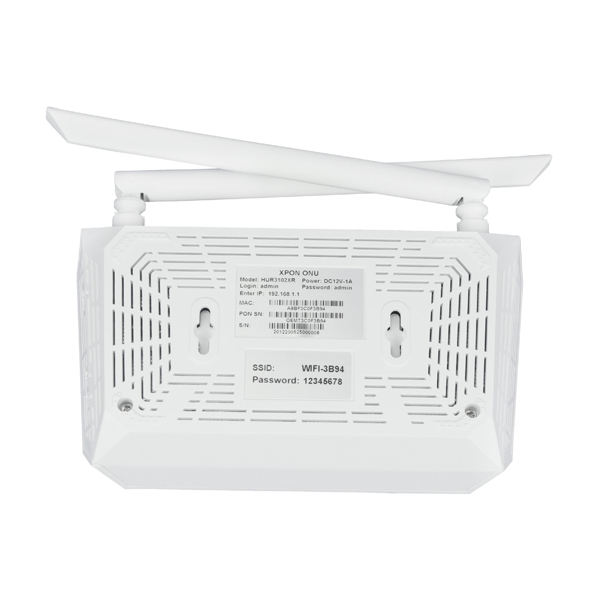

WHBR-3102XR is designed as HGU (Home Gateway Unit) in different FTTH solutions.
The carrier-class FTTH application provides different services access.
*
WHBR-3102XR is based on mature and stable, cost-effective XPON technology.
*
WHBR-3102XR adopts high reliability, easy management, configuration flexibility
and good quality of service guarantees to meet the technical performance of
EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X
Features:
*
Support EPON/GPON mode and switch mode automatically
* Support Route mode for PPPoE/IPoE/Static IP and Bridge mode
* Support IPv4and IPv6 Dual mode
* Support 4G WIFIand 2*2 MIMO
* Support SIP Proctolfor Voip Service
* Support LAN IP and DHCP Server configuration
* Support Port Mappingand Loop-Detect
* Support Firewall function andACL function
* Support IGMP Snooping/Proxy multicast feature
* Support TR069 remote configuration and maintenance
* Specialized design for system breakdown prevention to maintain stable system
Applications:
Typical
Solution:FTTH(Fiber To The Home)
Typical
Business:INTERNET,IPTV,WIFI etc
Hardware
Specification:
|
Technical
item
|
Details
|
|
PON Interface
|
1
GPON BOB (Class B+/Class C+)
|
|
Receiving
sensitivity: ≤-27dBm/≤-29dBm
|
|
Transmitting
optical power: +0.5~+5dBm/+2~+7dBm
|
|
Transmission
distance: 20KM
|
|
Wavelength
|
TX:
1310nm, RX: 1490nm
|
|
Optical
Interface
|
SC/UPC
Connector
|
|
Design
Scheme
|
RTL9603C+RTL8192FR+LE9643
BOB(i7525BN)
|
|
Chip
Spec
|
CPU
950MHz,DDR2 128MB
|
|
Flash
|
SPI
NAND Flash 128MB
|
|
LAN
Interface
|
1
x 10/100/1000Mbps(GE) and 3 x 10/100Mbps(FE) auto adaptive Ethernet
interfaces. Full/Half, RJ45 connector
|
|
Wireless
|
Compliant
with IEEE802.11b/g/n
|
|
Operating
frequency: 2.400-2.4835GHz
|
|
support
MIMO, rate up to 300Mbps
|
|
2T2R,2
external antenna 5dBi
|
|
Support:
Multiple SSID
|
|
Channel:
Auto
|
|
Modulation
type: DSSS, CCK and OFDM
|
|
Encoding
scheme: BPSK, QPSK, 16QAM and 64QAM
|
|
POTS interface
|
1
FXS, RJ11 connector
|
|
Support:
G.711/G.723/G.726/G.729 codec
|
|
Support:
T.30/T.38/G.711 Fax mode, DTMF Relay
|
|
Line
testing according to GR-909
|
|
LED
|
10
LED, For Status of WIFI, WPS, PWR, LOS, PON, LAN1~LAN4, FXS
|
|
Push-Button
|
3,For
Function of Reset, WLAN, WPS
|
|
Operating
Condition
|
Temperature:
0℃~+50℃
|
|
Humidity:
10%~90%(non-condensing)
|
|
Storing
Condition
|
Temperature:
-30℃~+60℃
|
|
Humidity:
10%~90%(non-condensing)
|
|
Power
Supply
|
DC
12V/1A
|
|
Power
Consumption
|
≤6W
|
|
Dimension
|
180mm×107mm×28mm(L×W×H)
|
|
Net
Weight
|
0.2Kg
|

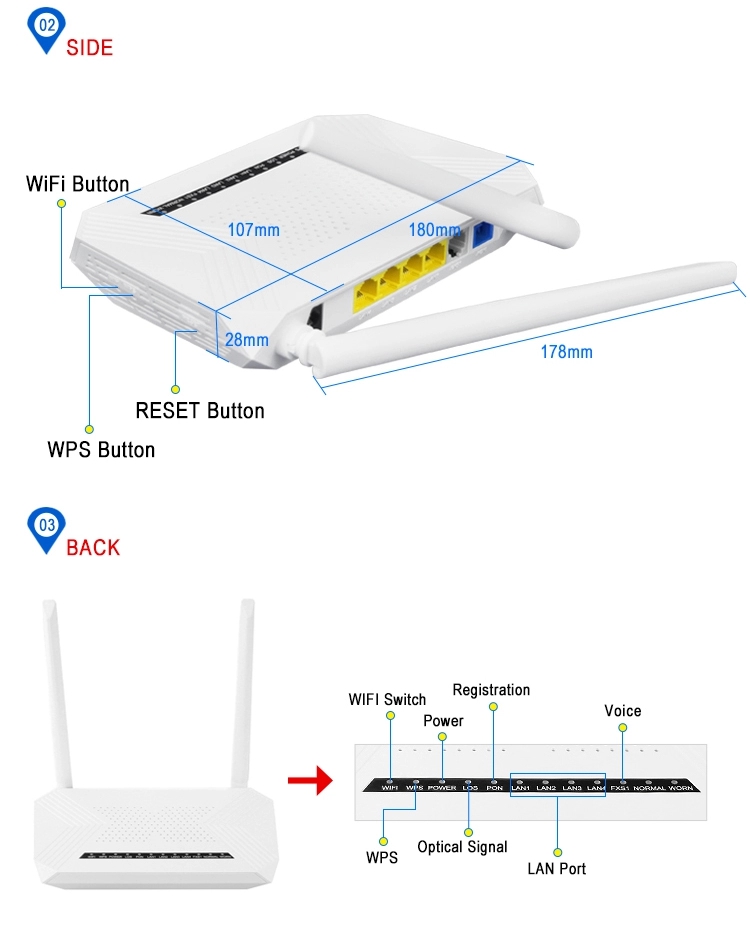

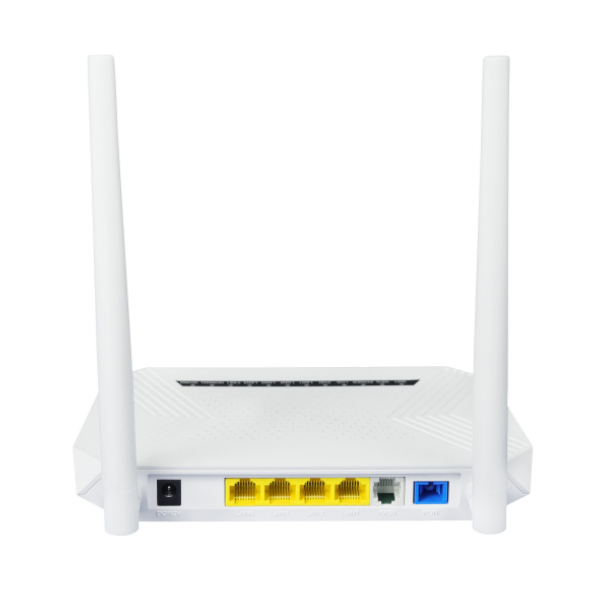

Panel
Lights Introduction:
|
Pilot
Lamp
|
Status
|
Description
|
|
WIFI
|
On
|
The
WIFI interface is up.
|
|
Blink
|
The
WIFI interface is sending or/and receiving data (ACT).
|
|
Off
|
The
WIFI interface is down.
|
|
WPS
|
Blink
|
The
WIFI interface is securely establishing a connection.
|
|
Off
|
The
WIFI interface does not establish a secure connection.
|
|
PWR
|
On
|
The
device is powered up.
|
|
Off
|
The
device is powered down.
|
|
LOS
|
Blink
|
The
device doses not receive optical signals or with low signals.
|
|
Off
|
The
device has received optical signal.
|
|
PON
|
On
|
The
device has registered to the PON system.
|
|
Blink
|
The
device is registering the PON system.
|
|
Off
|
The
device registration is incorrect.
|
|
LAN1~LAN2
|
On
|
Port
(LANx) is connected properly (LINK).
|
|
Blink
|
Port
(LANx) is sending or/and receiving data (ACT).
|
|
Off
|
Port
(LANx) connection exception or not connected.
|
|
