WHBR-5034E 1G EPON ONU

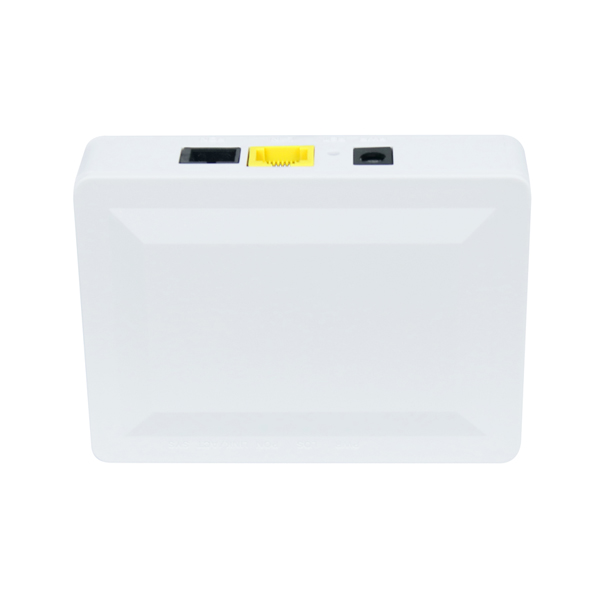

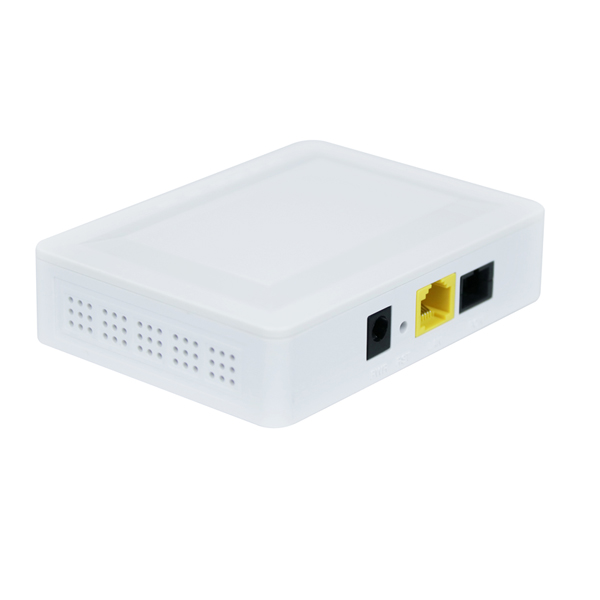

Product Overview:

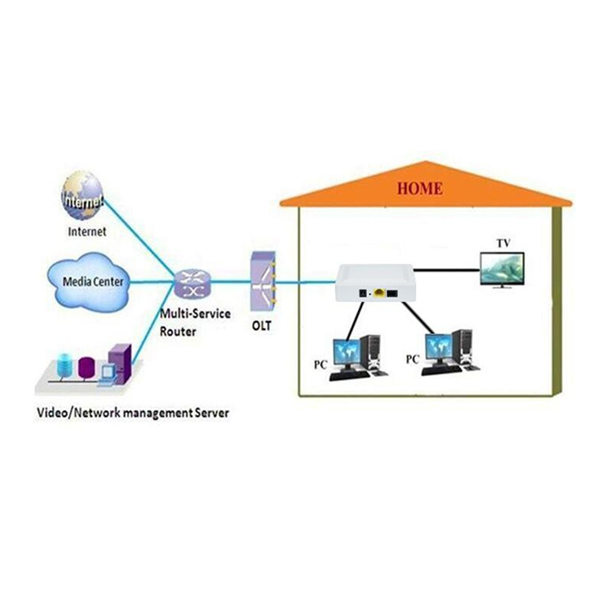

WHBR-5034E is designed as HGU (Home Gateway Unit) in deferent FTTH solutions; the carrier-class FTTH application provides data service access.

WHBR-5028E is based on mature and stable, cost-effective EPON technology.

WHBR-5028X adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0

WHBR-5028X is designed by Realtek chipset 9601D

Functional Feature:

Support EPON mode and switch mode automatically

Support ONU auto-discovery/Link detection/remote upgrade of software

Support Route PPPoE/DHCP/Static IP and Bridge mode

Support IPv4/IPv6

Support Firewall function and IGMP multicast feature

Support LAN IP and DHCP Server configuration

Support Port Forwarding and Loop-Detect

Specialized design for system breakdown prevention to maintain able system

Hardware Specification:

Technical item	Details
PON Interface	1 GEPON port(EPON PX20) Receiving sensitivity: ≤-27dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM
Wavelength	TX: 1310nm, RX: 1490nm
Optical Interface	SC/UPC Connector
LAN Interface	1x 10/100/1000Mbps auto adaptive Ethernet interface. RJ45 connector
LED	4 LED, For Status of PWR、LOS、PON、LINK/ACT
Push-Button	2,For Function of Power on / off, Reset
Operating Condition	Temperature: 0℃~+50℃ Humidity: 10%～90%（non-condensing）
Storing Condition	Temperature: -30℃~+60℃ Humidity: 10%~90%（non-condensing）
Power Supply	DC 12V/0.5A
Power Consumption	<3W
Dimension	120mmx78mmx30mm(L×W×H)
Net Weight	0.13Kg

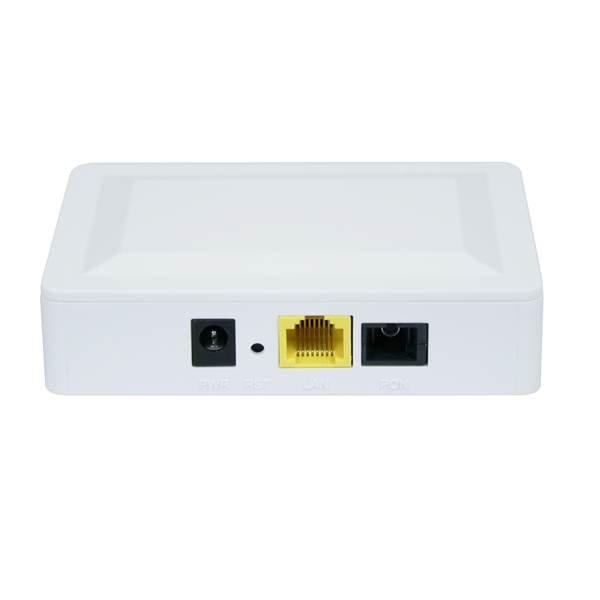

Panel lights Introduction:

Pilot	Status	Description
PWR	On	The device is powered up.
PWR	Off	The device is powered down.
PON	On	The device has registered to the PON system.
	Blink	The device is registering the PON system.
	Off	The device registration is incorrect.
LOS	Blink	The device doses not receive optical signals.
LOS	Off	The device has received optical signal.
LINK/ACT	On	Port is connected properly (LINK).
	Blink	Port is sending or/and receiving data (ACT).
	Off	Port connection exception or not connected.
