This
product is client distribution equipment in FTTH Optical Network, which is
distributed and connected with optical communication equipment, through the
adapters of the box, the optical signal is led out with optical patch cord to
realize the optical distribution function; the optical cable can also be pulled
out through optical splitted, distributed, stripped, twined and spliced with home optical fiber cable, to realize the direct connection function of
the optical cable and meet the needs of transmission network engineering.
Features

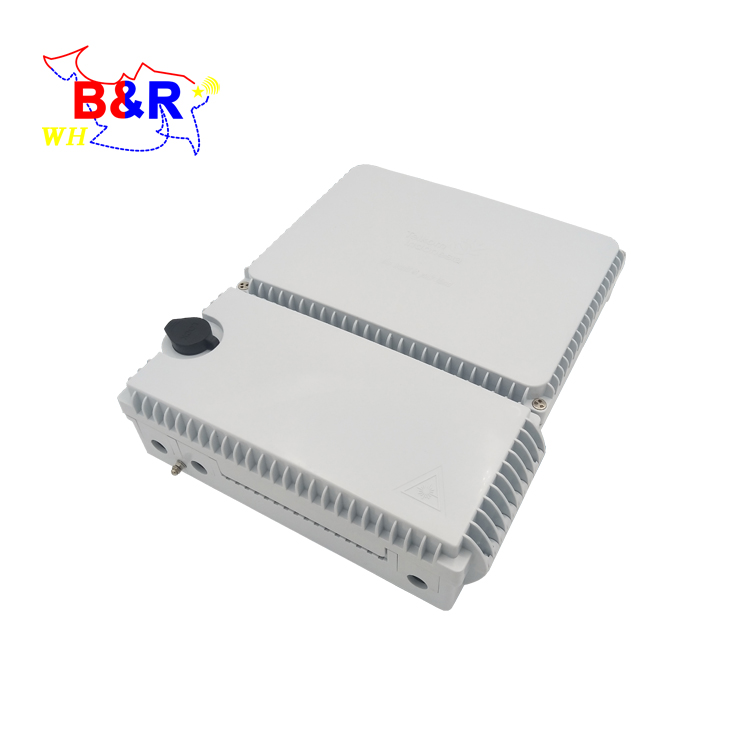

--- Made
of high quality impact resistant plastic with standard user interface;
---
Suitable for 2Pcs 1x8 Micro(Tube Type) PLC Splitter;
--- Anti
ultraviolet, Anti impact and Waterproof;
--- Both
for wall mounted and pole mounted;
--- Meet
the requirement of optical cable not breaking;

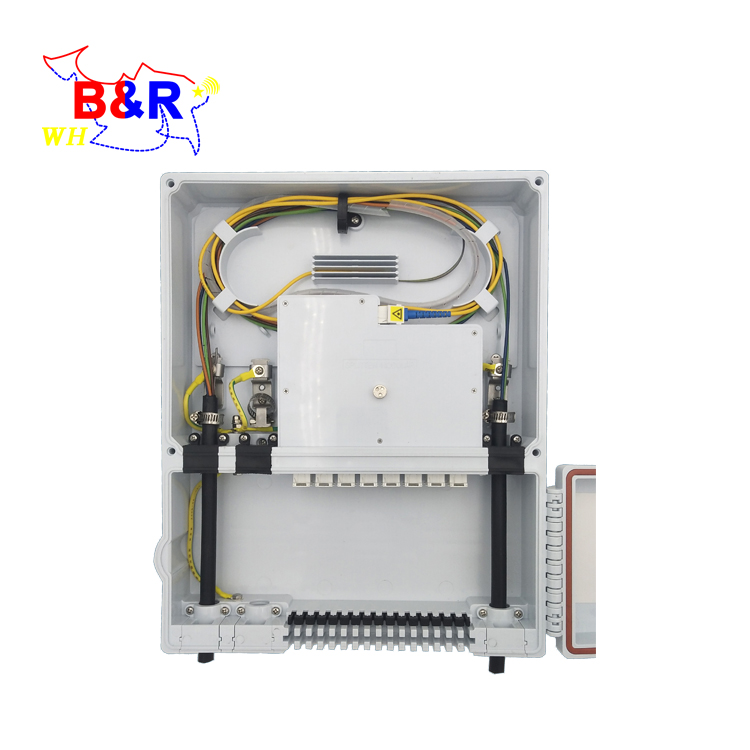

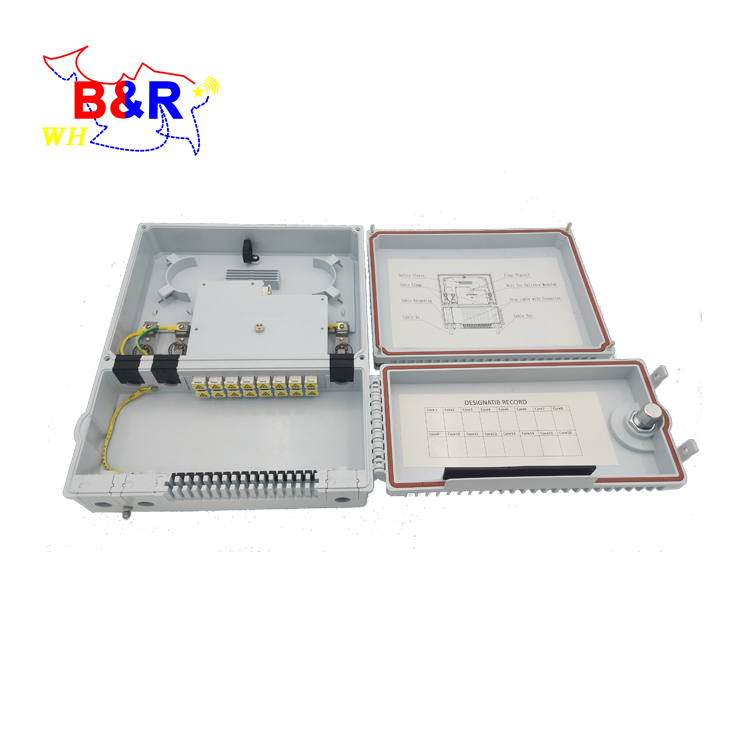

--- Functional division: the optical
fiber cable splicing and optical distribution area is independent from the
cable outlet area, and the two covers are opened separately, which makes the
installation and maintenance more convenient.
Technical Data
---
Curvature radius of optical fiber: ≥40mm;
--- Splice
Tray additional loss: ≤0.01dB;
--- Working temperature:
-20℃ ~ +60℃;
---
Resistance to lateral pressure: ≥2000N/10cm;
---
Shock resistance: ≥20N.m;
--- Waterproof: IP54.
|
Product
Model
|
WHBR-FDB-0316
|
Max Splice
Ratio
|
PLC 1:8 (2 Pcs)
|
|
Size(mm)
|
275x344x84
|
Packing Size(mm)
|
|
|
Weight (kgs)
|
2.5
|
Packing Volume (m3)
|
|
|
In/Out Fiber
account
|
3/16
|
Packing Weight(Kg)
|
|
|
Avaible Cable
OD
|
Φ6~Φ15
|
Other
|
|
Max Splice
Cores
|
8(Simplex)
|
Installation
|
Wall Mount (Standard)
|
|
Adapter type
|
|
Pole Mount (Option)
|
|
