1. Description

This product integrates fiber splice, optical distribution and cable distribution into one, which can realize direct splice and branching of optical cables, and is suitable for terminal access of users, which is distributed and connected with optical communication equipment, through the adapters of the box, the optical signal is led out with optical patch cord to realize the optical distribution function; It is also suitable for the protective connecting of optical cable and distribution pigtail; the optical cable can also be pulled out through optical splitted, distributed, stripped, twined and spliced with home optical fiber cable,  to realize the direct connection function of the optical cable and meet the needs of transmission network engineering.

--- Made of high quality impact resistant plastic with standard user interface;

--- Suitable for 2Pcs 1x8 or 1Pcs 1x16 Micro(Tube Type) PLC Splitter;

--- Anti ultraviolet, Anti impact and Waterproof;

--- Both for wall mounted and pole mounted;

     --- The adapter(earless) bracket is a two in one independent part, which can be separately installed and disassembled, and can be rotated at a certain angle, which is very convenient for operation and can adjust the bending radius of the outgoing cable.

--- All 4 open style cable entrance meet the requirement of optical cable not breaking;

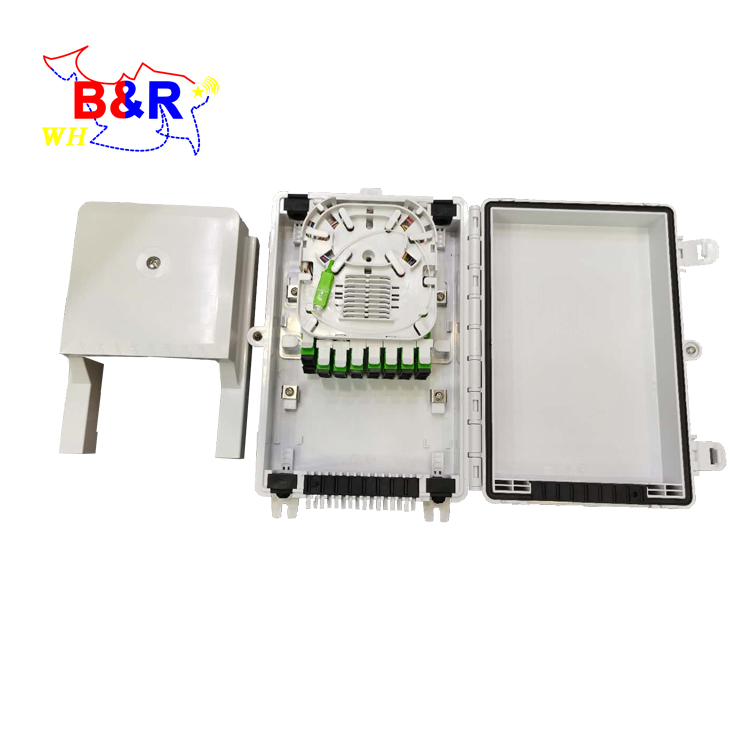

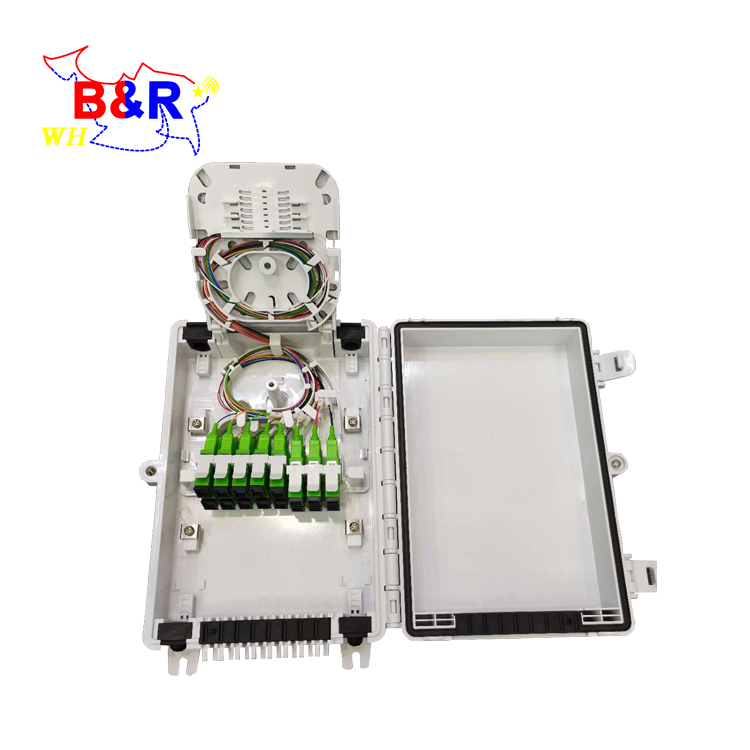

     --- The structural design of the bottom shell, reversible middle splice tray and inner cover makes the cable in/out area, splicing area, cable winding&storage area and cable outlet area form a closed independent partition, which is conducive to management and maintenance.

3. Technical Data

--- Curvature radius of optical fiber: ≥40mm;

--- Splice Tray additional loss: ≤0.01dB;

--- Working  temperature: -10℃ ~ +60℃;

--- Resistance to lateral pressure: ≥2000N/10cm;

--- Shock resistance: ≥20N.m;

--- Waterproof: IP54.
