Description:
Planar
Lightwave Circuit (PLC) Splitter is a type of optical power management device
that is fabricated using silica optical waveguide technology to distribute or
combine optical signals. It features small size, high reliability, wide
operating wavelength range and good channel-to-channel uniformity, and is
widely used in PON networks to realize optical signal power splitting.

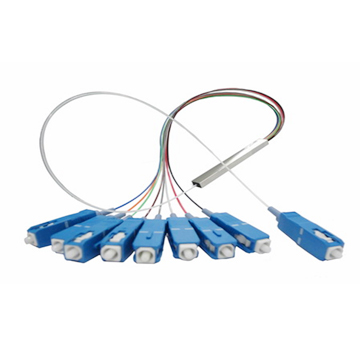

WHBR's 1xN PLC Splitter and 2xN PLC Splitter features guaranteed performance
specification and high reliability that meet Telcordia requirements and is
tailored for different applications and markets.
FEATURES
1.
Various coupling ratios, including 50/50, 40/60, 30/70, 20/80, 10/90, 5/95,
1/99, 60/40, 70/30, 80/20, 90/10, 95/5, and 99/1
2.
Multiple packaging options
3.
Fan-out type available
4.
PC, UPC, and APC connector polish type
5.
Available with FC, SC, ST, LC, MU terminations or customer specified
6.
Compact size
7.
Low Insertion loss
8.
Low polarization dependent loss (PDL)
9.
Good channel-to-channel uniformity
10.
Wide operating Wavelength: from 1260nm to 1650nm
11.
Wide operating Temperature: From-40℃ to 85℃
12.
High reliability and stability
BENEFITS
1.
Versatile - can be used with multiple fiber types for a variety of applications
2.
Port configuration options creates ideal option for specific requirements
3.
Small size reduces physical space requirements
4.
Highly definable coupling ratios enable product to serve precise need
5.
Packaging designed to deliver on size, shape, or ruggedness requirements
defined by the particular project
6.
Connector and polish options allow seamless integration into existing systems
WHBR
Splitters are available in a variety of styles, sizes, port
configurations, split values, and wavelength specifications allowing a high
degree of flexibility in tailoring the product to suit your precise
requirements and application.
APPLICATIONS
1.
Fiber to the point (FTTX)
2.
Fiber to the home (FTTH)
3.
Passive optical networks (PON, GPON, EPON)
4.
Local area networks (LAN)
5.
Cable television (CATV) system
6.
Central Office
7.
Test equipment
SPECIFICATIONS
1xN
PLC Splitter Specifications
|
PARAMETERS
|
UNIT
|
VALUE
|
|
Port Configuration
|
--
|
1x2
|
1x4
|
1x8
|
1x16
|
1x32
|
1x64
|
|
Fiber Type
|
--
|
SMF-28e or customer specified
|
|
Connector Type
|
--
|
Customer specified
|
|
Operating Wavelength
|
nm
|
1260~1650
|
|
Insertion Loss, Max
|
dB
|
4.6
|
8.0
|
11.3
|
14.3
|
17.5
|
21.6
|
|
Loss Uniformity
|
dB
|
0.7
|
0.9
|
1.1
|
1.5
|
1.8
|
2.3
|
|
Return Loss, Min
|
dB
|
55
|
55
|
55
|
55
|
55
|
55
|
|
Polarization Dependent Loss, Max
|
dB
|
0.2
|
0.2
|
0.3
|
0.3
|
0.3
|
0.4
|
|
Directivity, Min
|
dB
|
55
|
55
|
55
|
55
|
55
|
55
|
|
Wavelength Dependent Loss
|
dB
|
0.3
|
0.3
|
0.3
|
0.5
|
0.5
|
0.5
|
|
Temperature Stability
(-40~85℃)
|
dB
|
0.4
|
0.4
|
0.4
|
0.5
|
0.5
|
0.5
|
|
Operating Temperature
|
℃
|
-40~85
|
|
Storage Temperature
|
℃
|
-40~85
|
|
Package Size
(L x W x H)
|
mm
|
50x4x4
|
60 x 7 x 4
|
60x12x4
|
80x20x6
|
100x40x6
|
|
|
|
|
|
|
|
|
|
|
|
Note: All the data above does not include connectors.
Add
an additional 0.2dB loss per connector.
2xN
PLC Splitter Specifications
|
PARAMETERS
|
UNIT
|
VALUE
|
|
Port Configuration
|
--
|
2x2
|
2x4
|
2x8
|
2x16
|
2x32
|
2x64
|
|
Fiber Type
|
--
|
SMF-28e or customer specified
|
|
Connector Type
|
--
|
Customer specified
|
|
Operating Wavelength
|
nm
|
1260~1650
|
|
Insertion Loss, Max
|
dB
|
4.8
|
8.4
|
12.1
|
15.1
|
18.3
|
22.5
|
|
Loss Uniformity
|
dB
|
0.9
|
1.5
|
1.8
|
2.1
|
2.3
|
2.5
|
|
Return Loss, Min
|
dB
|
55
|
55
|
55
|
55
|
55
|
55
|
|
Polarization Dependent Loss, Max
|
dB
|
0.2
|
0.2
|
0.4
|
0.4
|
0.4
|
0.5
|
|
Directivity, Min
|
dB
|
55
|
55
|
55
|
55
|
55
|
55
|
|
Wavelength Dependent Loss
|
dB
|
0.3
|
0.3
|
0.3
|
0.5
|
0.5
|
0.5
|
|
Temperature Stability
(-40~85℃)
|
dB
|
0.4
|
0.4
|
0.4
|
0.5
|
0.5
|
0.5
|
|
Operating Temperature
|
℃
|
-40~85
|
|
Storage Temperature
|
℃
|
-40~85
|
|
Package Size
(L x W x H)
|
mm
|
50x4x4
|
60 x 7 x 4
|
60x12x4
|
80x20x6
|
100x40x6
|
|
|
|
|
|
|
|
|
|
|
|
Note: All the data above does not include connectors.
Add an additional 0.2dB loss per connector.
|
