1. Description:
Indonesia Telkom 16 Core Fiber Distribution Box WHBR-FDB-16JI can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 16 users requirements. It can help splicing, splitting, storage and management with suitable space.
2. Product Technical:
2.1 Color: Grey or Black optional;
2.2 Material: PC+ABS or ABS;
2.3 Flame Retardant Performance: Non-flame Retardant or as request;
2.4 Splitter: Can be with 2Pcs 1x8 Module Type Splitter;
2.5 Dimension: 597x207x88mm.

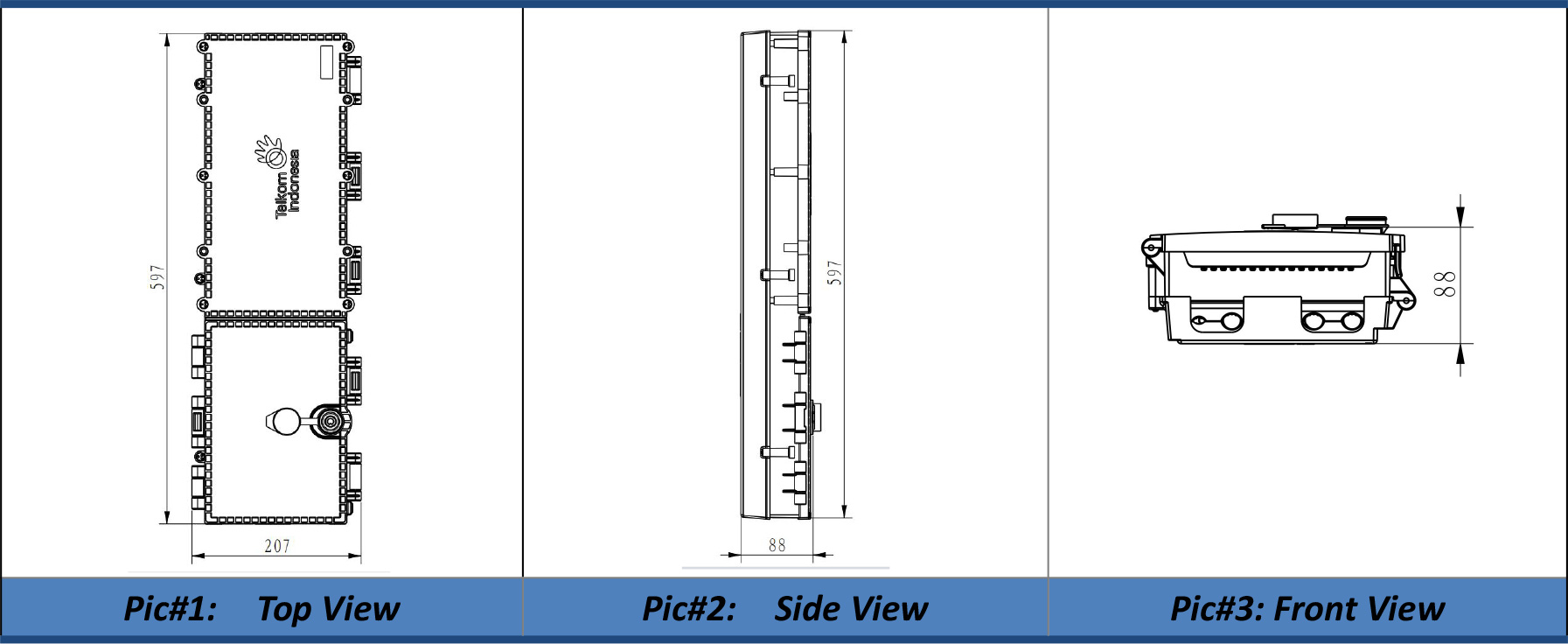

3. Product Diamention Diagram:
4. Features:
4.1 The body is made of high quality engineering plastic with good strength;

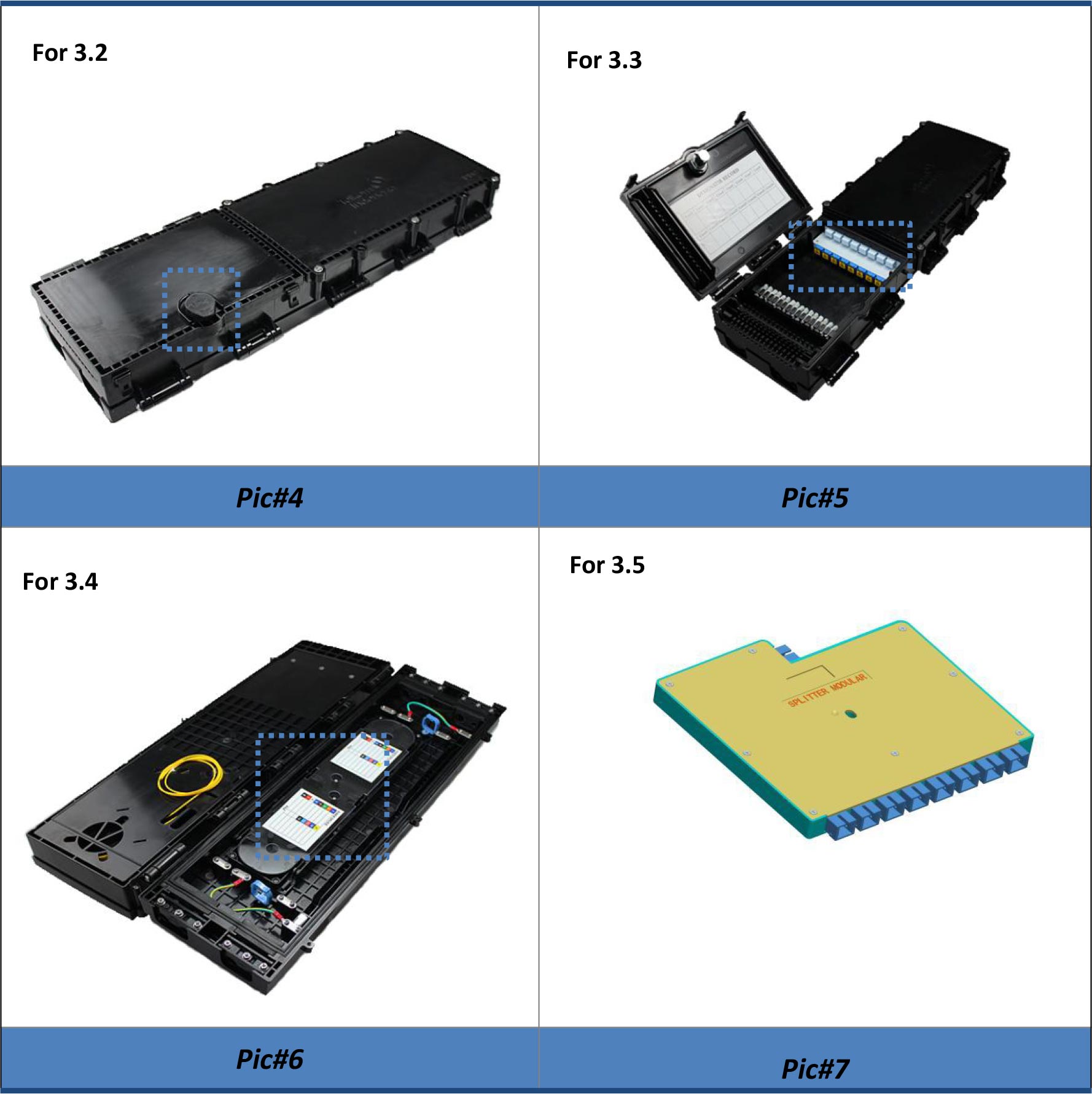

4.2 With safe special-shaped lock, the box can be opened easily and has good water-proof performance, suitable for indoor and outdoor natural environments (Pic#4 for details);
4.3 The drop leaf can be installed 2 pcs of 1*8 module type splitter ( Pic#5 for details);
4.4 Equipped with two chambers, pre splicing is much more convenient for installation and maintenance ( Pic#6 for details);
4.5 New design splitter to save space ( Pic#7 for details).

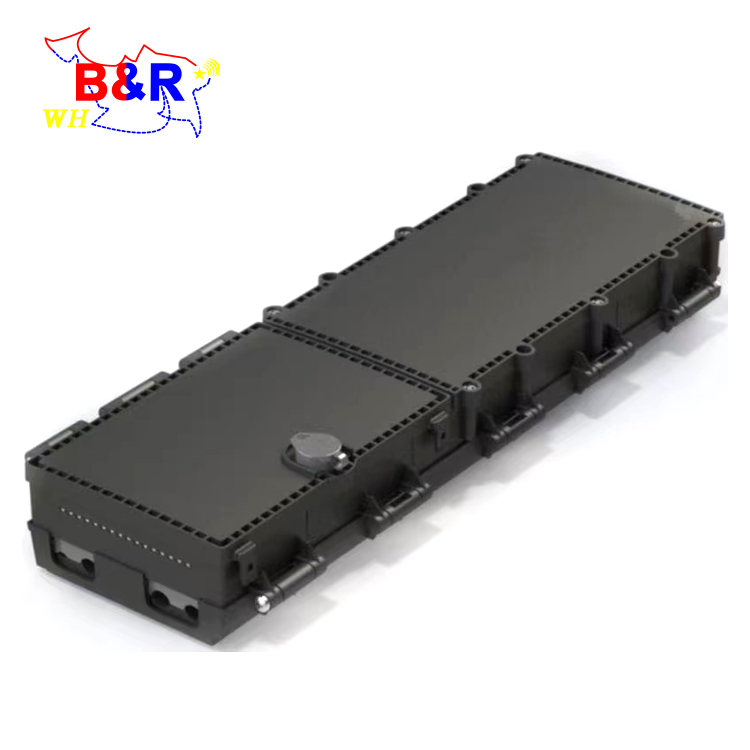

5. Product Pictures:
6. Package Information:
6.1 Plastic bag size:600*210mm
6.2 Inner box with single corrugated size: 620*220*110mm
6.3 Carton with double corrugated size: 630*450*350mm(6PCS/Box)
6.4 Weight per carton：21 KG
|
